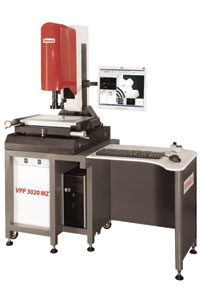

| Model No. |
VPP-MAZ 2515 |
VPP-MAZ 3020 |
VPP-MAZ 4030 |
| X Y Work Stage |
| Size of Top Plate |
420 x 250 mm |
430 x 330 mm |
610 x 460 mm |
| Traverse: X & Y axis |
250 x 150 mm |
300 x 200 mm |
400 x 300 mm |
| Load Capacity |
25 Kg |
30 Kg |
| Z axis Travel |
150 mm |
200 mm |
300 mm |
| Base and column |
Made of 0-0 grade Granite |
| Video System |
| Imaging Device |
1/2 Sony CCD camera |
| Lens |
High Resolution Tele-centric Zoom
Lens |
| Magnification Range |
20 x - 125 x |
| Illumination System |
| Profile |
LED Array placed below |
| Surface |
4 quad PC controlled zone Light |
| Measurement System |
| Linear Measurement X Y Z Axis |
Linear Encoders 1 u LC |
| Measurement Software |
3D Geometric Measurement Software with programming |
| SPC |
Advanced SPC Software in built |
| Measuring Accuracy |
(3 + L/100) microns |
| Computer |
Latest Computer with 17" LCD Monitor Windows XP OS |
| Optional Accessories |
Renishaw Touch Probe, Motorized
Zoom Lens |
| Physical Specifications |
| Net Weight |
170 Kgs |
280 Kgs |
410 Kg |
| Overall Dimensions |
1000 x 600 x 1400 mm |
1200 x 720 x 1600 mm |
1250 x 900 x 1571 |
