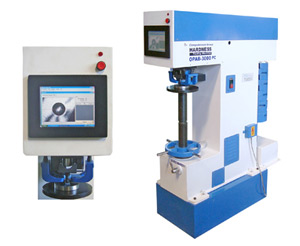

Computerized Brinell Hardness Testing
Model : OPAB-3000-IPC

Computerized Brinell Hardness Tester is designed for Brinell hardness measurement on steels and other ferrous materials and also on non- ferrous materials like Brass, Bronze, Aluminium, etc. The material can be cast, forged or rolled and the shape can be flat, round or irregular shapes.

Features

  • The actual load application system is of dead weight type combined with mechanical lever system. The supporting hydraulic system is for initial lifting of load before each test and dampening the load application system for smooth application of load.
  • A separate hydraulic power pack, positioned in the bottom part of the machine adds to the machine stability.
  • Our unique design of a floating fulcrum lever system ensures high accuracy and dependability.
  • An automatic indenter index system is provided which tilts the indenter after the impression and the magnified image is visible on the IPC for area measurement & display of hardness value.
  • Thus this machine saves a lot of cycle time, improves accuracy of measurement and gives fast and accurate results with less operator fatigue.
  • This model is mainly useful for production testing in Auto shops, Foundries, Forging Shops and Heat treatment units, etc.
  • The machine accuracies confirm to IS: 2281 – 2005 & BS : 240.

Special Additional Features

  • Machine has fully computerized system for indentation measurement and display.
  • The image is scanned for measurement and hardness is displayed automatically.
  • Accurate measurement of Brinell hardness through matched optics, CCD Camera with box image magnification, hardware and software using advanced image processing technology.
  • It gives an image of indentation directly on inbuilt Industrial PC of the machine with measurement facility and touch screen.
  • Fine adjustment facility is provided for accurate measurement of the image.
  • Auto, semi-auto and manual test facility
  • Quick compare mode for Go: No-Go application.
  • Coarse and Fine position adjustment for manual test.
  • Calibration modes – Camera, Axial & Radial Calibration (5 Point calibration)
  • Batch testing facility
  • Roll based access to features.
  • Statistical analysis.
  • Certificate generation.
  • Search based on various parameters.
  • Test report, certificate printing facility.
  • Software compatibility with Windows XP-SP2, Vista, Win-7 OS.

Industrial Panel PC Specifications

  • Fanless Panel PC with 4 :3 LED touch screen panel and industrial motherboard specially designed for industrial applications
  • Intel Atom Processor 1.6 GHZ,1GB DDR2 RAM
  • 8.0" LCD monitor having resolution 800 x 600 (SVGA)

Software Features (BrinSoft)

This is precise Brinell Impression Measurement Software. High technology image management system is built to get desired accuracy with IS compliance to be measured within given time.

The detailed features are as listed below:

Precise Brinell Impression Measurement

Based on Image Processing techniques, BrinSoft achieves high precision image measurement and also the repeatability in the readings. It is easily configurable for environment. Working with USB camera enables BrinSoft to be deployable at difficult measuring conditions along with standard BIMS applications.

Measurement Modes

There is a fast and accurate Auto mode for standard components with good surface finish. Additionally, a Semi-Auto mode is provided for measuring blured images due to poor surface finish. In case of very fast measurement requirements where the actual hardness value is not required. A confirmation that it is within specified limits is enough, compare mode is also provided. With such variety of modes, most of the test conditions are covered enabling the user to obtain results in required methodology and in required formats.

Calibration facility

Calibration is the heart of every measurement. So, BrinSoft provides multiple calibration levels to achieve high accuracy in results. There is Pixel calibration accompanied with multi-point calibration and ERMA calibration. With these calibration techniques, BrinSoft provides precise measurement results.

Analysis and Reporting

If one cannot find the historical data, it is as good as unavailable. So, Search is key feature of BrinSoft. Test Certificate and Customer are key search criteria along with other details. Uniqueness of the Test Certificates being generated is maintained and the same is available for searching and printing.

Additionally, there is statistical analysis available in tabular and graphical formats to assist the user.

Hardware Interface

The key input to BrinSoft is the image captured by the CCD camera. So, presently it is configured to work with special purpose USB camera for this application. However, it can be easily configured to work with any other camera considering the image quality.

Technical Specifications

Model : OPAB-3000-IPC
Load (kgf) 500 to 3000 in steps of 250
Initial load (Kgf) NIL
Maximum test Height x Throat (mm) 380 x 200
Maximum depth of elevating screw
below base (mm) approx.
180
Machine height (mm) approx 1250
Size of base (mm) approx 400 x 740
Net weight (Kg) approx 400
Drive motor (hp) 0.5
Mains supply 3 Phase, 415V, 50 Hz, AC
Indentation Measurement Direct reading through CCD Camera with 60X magnification on inbuilt Industrial PC.

Standard Accessories

Flat testing table dia 200 mm 1 No
“V” Groove testing table dia 70 mm for round jobs of dia 10 to 80 mm 1 No
Ball holder dia 5 mm 1 No
Ball holder dia 10 mm 1 No
Test Block HBW - 5/750 1 No
Test Block HBW - 10/3000 1 No
Industrial PC 1 No
Allen key set 4 -pieces
Tungsten Carbide ball dia 5 mm 1 No
Tungsten Carbide ball dia 10 mm 1 No
Instruction manual 1 Book

Optional Accessories

Test Blocks of desired hardness range
Special Test fixtures for odd jobs / Production testing
Portable Computerized Brinell Impression Measuring System (BIMS system)
Special Extra loads of 187.5, 250 kgf can also be offered
