Vertical Profile Projector

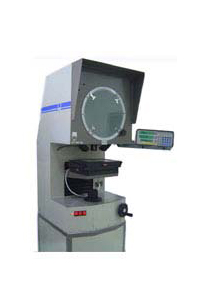

Model 300TE

Screen

Glass screen - Glass screen Ø 400mm with crosslines

Magnification

5x,10x,20x,50x,100x Telecentric Lenses

Workstage

  • Size of Top Plate - 350mm x 210mm
  • Measuring Traverse - X:200mm, Y: 100mm
  • Working Area - 205mm x 105mm
  • Load Capacity - 20 kgs
  • Max Diameter - 150mm

Digital Measuring Systems

  • Linear - 3 axis DRO with Linear Encoders 0.005mm LC
  • Angular - 360º rotary encoder LC of 1' of an arc. With digital display Tungsten Halogen lamps

Illumination Systems

  • Profile - 24V, 150W
  • Surface Illumination - 24V, 150W - 2 Nos

Weight

100 kg ( Unpacked)

Dim

(LxWxH) 700 x 480 x 1025

Model 400TE

Screen

Glass screen - Glass screen Ø 400mm with crosslines

Magnification

5x,10x,20x,50x,100x Telecentric Lenses

Workstage

  • Size of Top Plate - 350mm x 260mm
  • Measuring Traverse - X:250mm, Y: 150mm
  • Working Area - 255mm x 155mm
  • Load Capacity - 255mm x 155mm
  • Max Diameter - 175mm

Digital Measuring Systems

  • Angular - 360º rotary encoder LC of 1 ' of an arc. With digital display
  • Linear - Computerised DRO System with Geometric Functions and Graphical User Interpface 15" LCD Monitor, keyboard and Mouse Tungsten Halogen lamps

Illumination Systems

  • Profile - 24V, 150W Surface
  • Illumination - 24V, 150W - 2 Nos

Weight

125 kg ( Unpacked)

Dim

(LxWxH) 900 x 520 x 1300

Model 600V

Screen

Glass screen - Ø 300mm with crosslines

Magnification

5x, 10x, 20x, 50x, 100x Telecentric Lenses

Workstage

  • Size of Top Plate - 350mm x 260mm
  • Measuring Traverse - X:200mm, Y: 100mm
  • Working Area - 200mm x 130mm
  • Load Capacity - 25 kgs
  • Max Diameter - 175mm

Digital Measuring Systems

  • Linear - 3 axis Simple DRO with Linear Encoders 1µ LC
  • Angular - 360º rotary encoder LC of 1' of an arc. With digital display Tungsten Halogen lamps

Illumination Systems

  • Profile - 24V, 150W
  • Surface Illumination - 24V, 150W - 2 Nos

Weight

125 kg (Unpacked)

Dim

(LxWxH) 1,040 x 860 x 1,676
